FRP (Filament Wound) Cylinders & Pipes

Application :

Electrical & Industries as per client's requirements.


Availability :

Cylinders & Pipes up to 3.5 M Ø x 8.0 M Length can be made.



Sr. No.

Parameter Epoxy Cylinder
1  Specific gravity ( Tolerance + / -0.1 ) 2.0
2  Tensile Strength, KG/CM2 1000 Axil
3  Cross Braking Strength, KG/CM2 1300
4  Compressive Strength, KG/CM2 2300
5   % water absorption after 24 hrs, Immersion in water ( at 200 ° F ) 0.25
6  Electric Strengh, Flate wise in oil at KV/mm 12
7  Electric Strengh, at 90° edgewise KV/mm 50
8  Martens heat Distortion Temperature °C 155

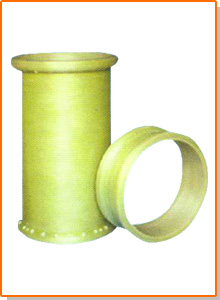

Cylinders for
OLTC
End
Rigns

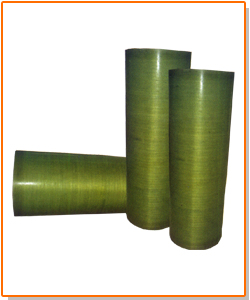

Cylinders for
Dry Type
Transformers

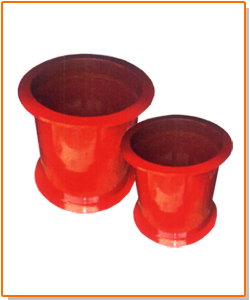

FG Cylinder
with Hut Profile
FG Cylinder
with Comb
