Pultrusion Item / power Line Supports

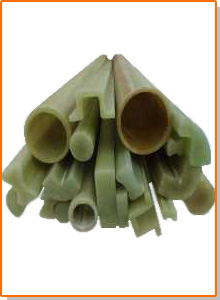

Angles, Channels, 'I' section, Dog bones, Pipes, Rods, coil support blocks & Cable Trays, Gratings are manufactured.

Application :

Transformers, in chemical, electrical & Industrial uses. Also as per client's requirements.


Availability :
All sizes up to practical requirements are available. Special sizes on demand can be made.

Specification :
 Dogbones

A B C R1 R2
6 8 3 1.5 6
8 10 4 1.6 6.25
9 12 4, 5 1.5 4
10 12 5 1.7 6.25
10 13 5, 3 1.7 6.25
11 13 5, 5 1.5 4, 5
10 14 5 1.7 6.25
10 16 6 2 6.25
12 16 6 1.8 6.5
13 16 6, 5 2 4.75
14 16 6, 5 1.8 6.5
14 18 7 1.8 6.75
15 20 7 1.9 7
20 22 4 2 7
22 25 5 2.5 8

 Corner Piece

A B C D R
14 14 8 8 8
14 22 8 13 10
17 9 6 6 10
22 22 13 13 13
25 25 15 15 15

 Hat Section

A B C D E F
14 24.4 14.7 7.6 9.3 2.7
18 24.4 14.7 7.6 9.3 2.7
24 24.4 14.7 7.6 9.3 2.7

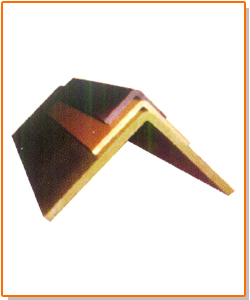

 Pultruded Angle

A B C
25 25 3
25 32 3
25 38 3
38 38 3
50 50 5
50 63 5
50 75 3

 'I' Section

A B1 B2 C1 C2
25 5 3 15 10
32 5 3 15 10
40 10 6.5 15 10

 Pultruded C - Section

A B C
30 75 3
50 100 5
50 150 5
50 200 5

 Pultruded Rectangle Section

A B C
25 50 3
25 50 5
40 40 3
40 40 5
50 50 5
75 75 5
25 75 4

 Pultruded Hollo Tubes

A B
10 16
17 22
22 27
19 25
25 32
27 32
32 38

Cable
Tray
Pultruded
Section

Pultruded
Rod

Pultruded
Section

Notes : 1 - All dimensions are in mm.
2 - The sizes provided are of general practice & use, special sizes can be prepared on client's
     requirement.
